NESSUNO
SPECIFICATIONS:
  • Sizing: even numbers, every two centimeters --
    48, 50, 52, 54, 56, 58, 60, 62 (center to center).
  • 27.2 seatpost.
  • 1.125" threadless steerer.
  • English threaded bottom bracket shell.
  • Approximate b/b height: 11.25".
  • Dedacciai COM 12.5 oversize double-butted Cro-Moly tubing.
  • Frame construction: Tig-welded main triangle, lugged fork crown (straight blades). Columbus rear track dropouts brazed to chainstays and seatstays.
  • Drilled for front and rear brake ( contemporary standard "short-reach" type).
  • Dropout spacing: 100 mm front; 120 mm rear.
  • Frame decals: None. The US distributor of this frameset (Euro-Asia Imports) calls it the "Bareknuckle"and you may find it from other vendors listed as such. Since there are no identifying graphics applied to the frame however, I have taken the liberty of listing it here as Nessuno (Italian for "no one").
  • Hand made in Venezia, Italy.
  • Colors options: black, putty green, blue, pink, bright red, kawasaki green, violet.

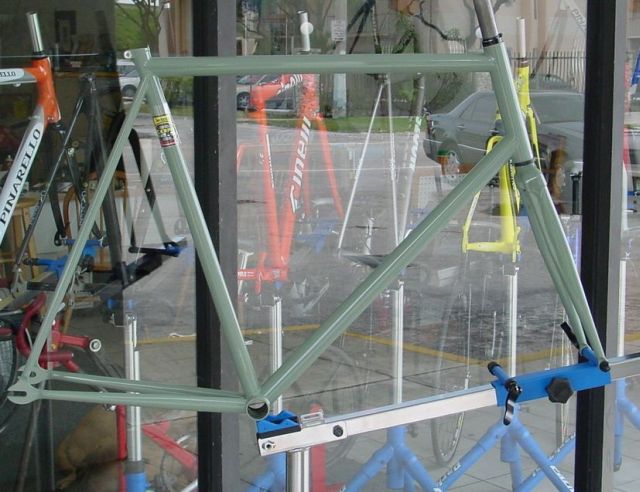

nemo_green4.jpg - 67.6 K

CURRENT PRICE

Frame Geometry
Size
(center to center)
Top tube
Fork Offset
Seatmast ∠
Headtube ∠
Headtube
(length)
48 52.0 35.5 mm. 74.5 75 92
50 53.0 35.5 mm. 74.5 75 111
52 54.0 35.5 mm. 74 75 130
54 55.0 35.5 mm. 74 75 150
56 56.5 35.5 mm. 73.5 75 167
58 57.5 35.5 mm. 73.5 75 188
60 58.5 35.5 mm. 73 75 208
62 59.5 35.5 mm. 73 75 228

Other Track Frames
Track Components
Specials/Discounts
Track Catalog Main Page

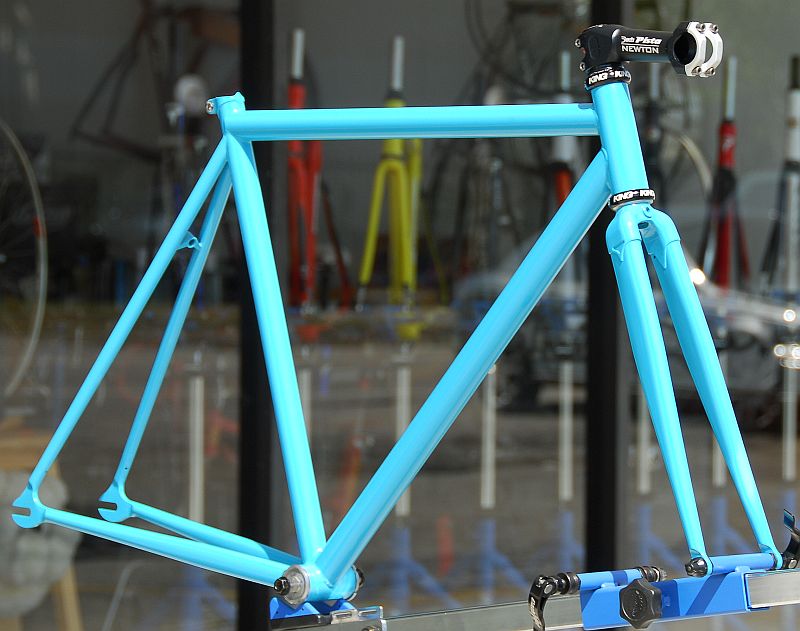

nemo_blue.jpg - 114.66 K
