| Please bear with me as I add more and better photos and more complete data about Terry Dolan's exciting range of track frames; I'm still building this page. |  |
| Please bear with me as I add more and better photos and more complete data about Terry Dolan's exciting range of track frames; I'm still building this page. | |

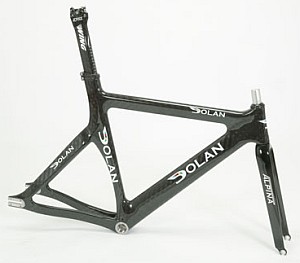

| Our shop display bike above is built around a 54 cm Dolan Kadet Track frame. Matte black with Alpina track fork (carbon fiber blades with alloy steerer, 30 mm offset). In lieu of the track fork model, this frame is optionally available with a road fork (carbon blades, alloy steerer) which is drilled for brake caliper. |
| Size (center to top of seatpost receptor) |
Top tube | Seatmast° | Head tube° | Front-center | Fork Offset | B/B Drop |
| 45 | 51.2 | 75 | 71 | 57.5 | 30 | 52 |
| 50 | 52.6 | 75 | 72 | 56.8 | 30 | 52 |
| 52 | 53.5 | 75 | 73 | 57.7 | 30 | 52 |
| 54 | 54.7 | 75 | 74 | 58.2 | 30 | 52 |
| 56 | 56.5 | 74 | 75 | 58.3 | 30 | 52 |
| 58 | 57 | 74 | 75 | 58.7 | 30 | 52 |
| Photo above: Dolan Track Champion. Pearl white with Alpina track fork (carbon fiber blades with alloy steerer, 30 mm offset). Just like the Kadet, in lieu of the track fork model, this frame is optionally available with a road fork (carbon blades, alloy steerer) which is drilled for brake caliper. This picture was pilfered from Dolan's website. I'll get our own pix up here soon. |
| Size (center to top of seatpost receptor) |
Top tube | Seatmast° | Head tube° | Front-center | Fork Offset | B/B Drop |
| 52 | 53 | 73.4 | 75 | 56.9 | 30 | 60 |
| 54 | 55.1 | 73.4 | 74 | 58.5 | 30 | 60 |
| 56 | 55.7 | 73.4 | 74 | 59.2 | 30 | 60 |
| 58 | 56.5 | 73.4 | 74 | 60 | 30 | 60 |
| 60 | 58 | 73.4 | 74 | 60.8 | 30 | 60 |
